Offset Disc Harrow

Quantity:
sharethis sharing button
  • 1BZX

  • Made In P.R.C

  • Iron Case or Iron Stand

  • One Set

  • 1

  • T/T

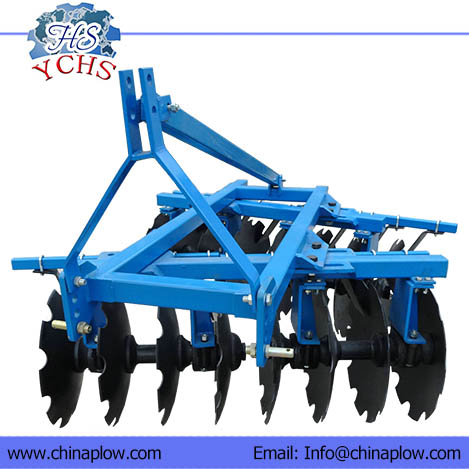

1BZX series of Hydraulic offset heavy duty disc harrow is well suitable for heavy clay soil, waste land and weedy field as well, mainly suitable for stubble cleaning before farming, it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow.
Advantage:
Square shaft: 38mm.
Disc distance: 230mm.
Grease bearing group.
Disc blade: 26".
3-point linkage matched with 50-65hp tractor.

Model Unit 1BZX-1.6 1BZX-1.8 1BZX-2.0
Working width mm 1600 1800 2000
Working depth mm 200
Q’ty of disc   14 16 18
Size of disc blade   24”x5mm
Shaft size   Square shaft 38mm
Bearing   Brail bearing assembly
Total weight kg 740 820 900
Matched power hp 50 60 70
Linkage   Three point (Ⅱ)

Offset disc harrow
