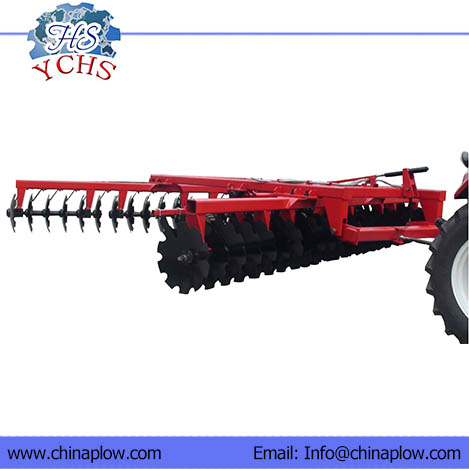

TAY series Hydraulic offset heavy disc harrow is well suitable for heavy clay soil, waste land and weedy field as well, mainly suitable for stubble cleaning before farming , it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow. This heavy disc harrow is especially for the big farm field.
Advantages:
This hydraulic offset heavy disc harrow is trailed for 200-300hp tractor.
Own hydraulic system to lift and down the transport wheel freely.
High quality of difunctional oil cylinder.
Widely working width of this heavy disc harrow to be 5.0-6.5m.
65Mn Spring steel disc blades, HRC: 38-44.
| Model | Unit | TAY4050 | TAY4455 | TAY4865 |
| Working width | mm | 5000 | 5500 | 6500 |
| Working depth | mm | 240 | 240 | 240 |
| Q’ty of disc | | 40 | 44 | 48 |
| Tire | | 10.00/75 | 7.50-16/11L-15 | 11L-15/400/60-15.5 |
| Total weight | kg | 3900 | 4000 | 4300 |
| Matched power | hp | 200 | 260 | 300 |
| Linkage | | Trailed(trailed hole diameter 38mm) ;hydraulic output 1 type(difunctional oil cylinder),
oil connection in 1/2” thread |
| The items selectable | | 710*8 disc blade; oil connection (M22*1.5/M20*1.5/M18*1.5) |
