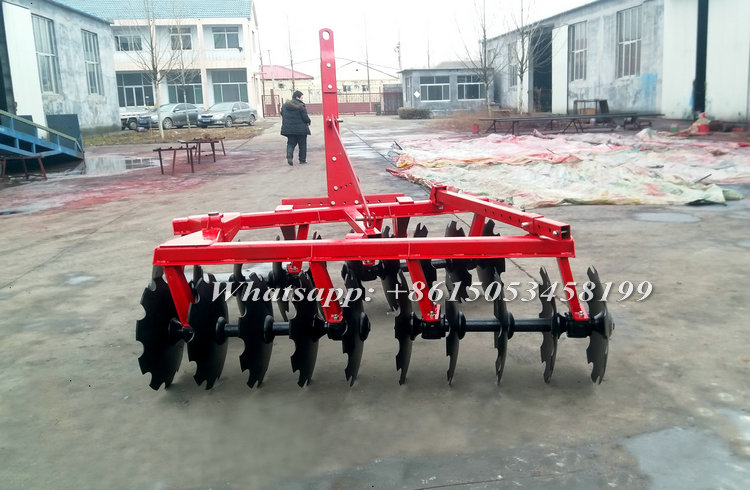

This kind of agricultural offset disc harrow Yucheng Hengshing machinery (YCHS) manufactured is specially designed, manufactured and borrowed according the features of foreign disc plough, it is mounted or trailed with tractor in you different need. This hinged disc harrow can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil, the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
This kind of agricultural offset disc harrow Yucheng Hengshing machinery (YCHS) manufactured is specially designed, manufactured and borrowed according the features of foreign disc plough, it is mounted or trailed with tractor in you different need. This hinged disc harrow can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil, the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
Advantages: It is an amphibious disc harrow for 30-120hp 4-wheels tractor. The disc blade can be flat or notched for your need. The working depth can be adjusted freely. 65Mn spring steel disc blade, HRC: 38-44.
Model
Unit
1BJ-6-6
1BJ-7-7
1BJ-8-8
1BJ-9-9
1BJ-10-10
1BJ-11-11
1BJ-12-12
Working width
mm
1400
1600
1800
2000
2300
2500
2700
Working depth
mm
140
Q’ty of disc
12
14
16
18
20
22
24
Total weight
kg
440
490
550
590
620
650
720
Matched power
hp
30
40
50-60
60-70
70-80
80-100
90-110
Linkage
three point suspension I type/ trailed
Three-point suspension II type /Trailed
Advantages: It is an amphibious disc harrow for 30-120hp 4-wheels tractor. The disc blade can be flat or notched for your need. The working depth can be adjusted freely. 65Mn spring steel disc blade, HRC: 38-44.
