Disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened a break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land.
It can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil, the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
Advantages:

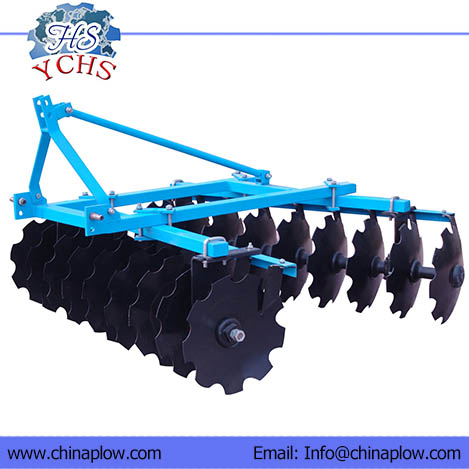

It is mounted light disc harrow.
This tractor offset disk harrow is suitable for 15-60hp tractor.
The material of plough disc is 65Mn spring steel ,it is more strong.
Strong and durable bearing.
Fit the scraper for each disc blade to clean the objects.
The working depth can be adjusted freely.
65Mn spring disc blade, HRC: 38-44.
| Model | Unit | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 |
| Working width | mm | 1100 | 1300 | 1500 | 1700 | 1900 | 2300 |
| Working depth | mm | 120 |
| Q’ty of disc | | 12 | 14 | 16 | 18 | 20 | 24 |
| Total weight | kg | 200 | 220 | 240 | 260 | 310 | 360 |
| Matched power | hp | 15 | 18 | 25 | 40 | 50 | 60 |
| Linkage | | Three-point suspension I type | Three-point suspension II type |
