Four Discs Ridgers

Quantity:
  • 3Z
  • Made In P.R.C
  • Standard Export Packages
  • One Set
  • 1
  • T/T

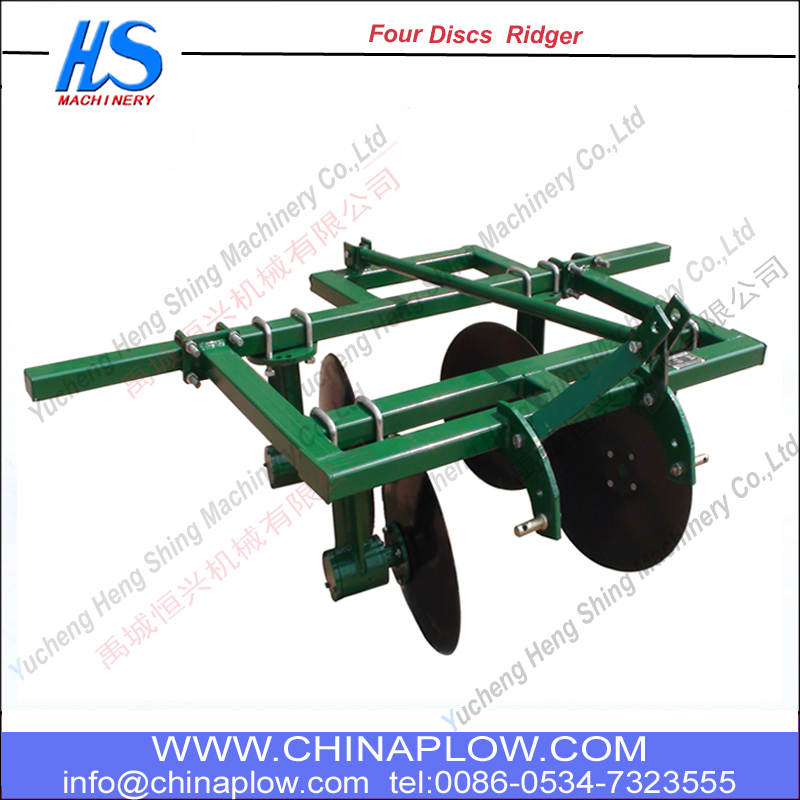

3Z series of disc ridger is suitable for ridging after the tillage in the farm field. It consists of heavy duty tubular box frame, 3 point hitch system and discs. The disc blades are made after the heat treatment in the material of 65Mn spring steel that has better hardness. The machine is reasonable for construction, conveniently to transport, easy to adjust, and conveniently to use and maintain.
Advantages:
The disc blades are made after the heat treatment in the material of 65Mn spring steel.
There two series of this disc ridger. Two discs and four discs respectively. You can choose the No’s of disc to meet your need.

Model unit 3Z-80 3Z-120 3Z-140 3Z-180 3Z-260
Working width mm 800 1200 1400 1800 2600
Ridging width  mm 200~450 300-500
Ridging height  mm 150-260 150~300
Ridging of rows   1(2) 1(2) 1 1(2) 1(2)
Total weight kg 120 140 220 200 246
Matched power hp 20~30 30-40 50-60 60-70 70-90
Linkage   Three-point suspension I type Three-point suspension II type
The items selectable   Rear cover board
