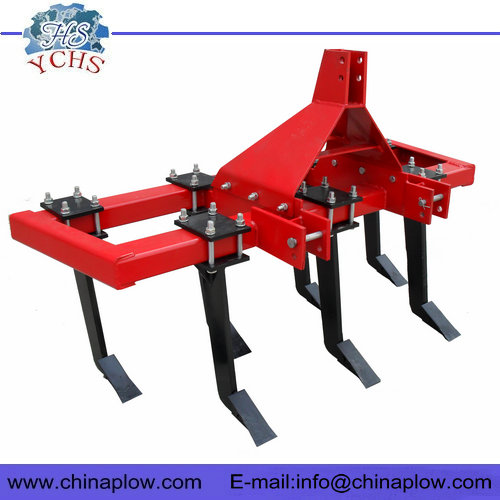

Factory supply Farm use tractor Subsoiler This subsoiler is automatic agricultural machinery with various functions. Made up of frame, pole, plow share, soil separating board, leading bogie and strengthening tie bar. It can be installed on the left beam between the front and rear wheel. With adjustable ridge distance, automatic plow share and controllable depth; applicable for deep loosening of land and breaking up clods, matchable with seeding machine; with small turning radius, especially suitable for slope. Save fuel and labor; with good economic returns, suitable for promotion.
Factory supply Farm use tractor Subsoiler This subsoiler is automatic agricultural machinery with various functions. Made up of frame, pole, plow share, soil separating board, leading bogie and strengthening tie bar. It can be installed on the left beam between the front and rear wheel. With adjustable ridge distance, automatic plow share and controllable depth; applicable for deep loosening of land and breaking up clods, matchable with seeding machine; with small turning radius, especially suitable for slope. Save fuel and labor; with good economic returns, suitable for promotion.
Advantages: This subsoiler is a tractor mounted cultivator. The max working depth could be 25cm, and the working width could be adjusted to meet the different soil condition. This subsoiler could fit the seeder on the tractor to finish the cultivating and seeding work together.
Model
Unit
3S-1.0
3S-1.4
3S-1.8
3S-2.1
3S-2.6
Working width
mm
1000
1400
1800
2100
2600
Working depth
mm
100-250
No.of tines
5
7
9
11
13
Total weight
kg
240
280
320
370
450
Matched power
hp
25
40
50~60
70~80
80~100
Linkage
Three-point suspension I type
Three-point suspension II type
Advantages: This subsoiler is a tractor mounted cultivator. The max working depth could be 25cm, and the working width could be adjusted to meet the different soil condition. This subsoiler could fit the seeder on the tractor to finish the cultivating and seeding work together.
