Mowing Hay Raking

Quantity:
  • 9GBL
  • Made In P.R.C
  • Standard Export Packages
  • One Set
  • 1
  • T/T

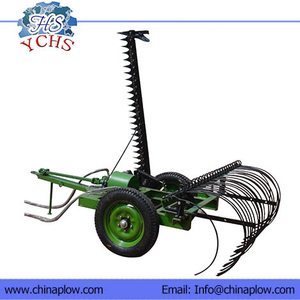

Model 9GBL series cutting and raking machine take advantage of the offset crank link mechanism to drive the cutter blade mow grass simultaneously and the raking mechanism rake the grass together. And the machine is adequate for cutting the natural and planted grasses in ranch, mountain and hilly area.
Advantages:
This slashing hay rake can cut and collect the grass at the same time.
It has own rubber wheels to transport.
Hydraulic system to lift and down freely.
It is a tractor trailed hay rake for 12-30hp tractor.

Model unit 9GBL-1.4 9GBL-1.6 9GBL-1.8 9GBL-2.1
Working width mm 1400 1600 1800 2100
Working depth mm 50-80
PTO Rotation speed  r/min 540
PTO shaft spline   6 spline
Total weight kg 280 300 320 340
Matched power hp 12-20 15-20 20-30 20-30
Linkage   Trailed

The items selectable

Tipping single action oil cylinder, oil connection in 1/2” thread,
or oil connection (M20*1.5;M18*1.5;M22*1.5),
PTO transmission shaft in 8 spline
