Mini Plough Machine

Quantity:
sharethis sharing button
  • 1LYQ

  • Made In P.R.C.

  • Standard Export Packages

  • One Set

  • 1

  • T/T

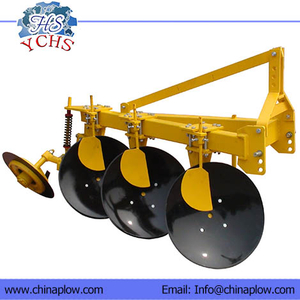

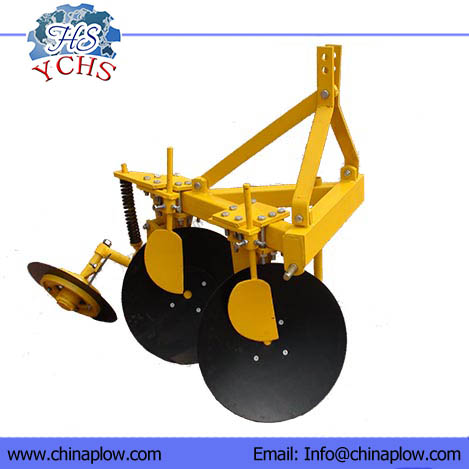

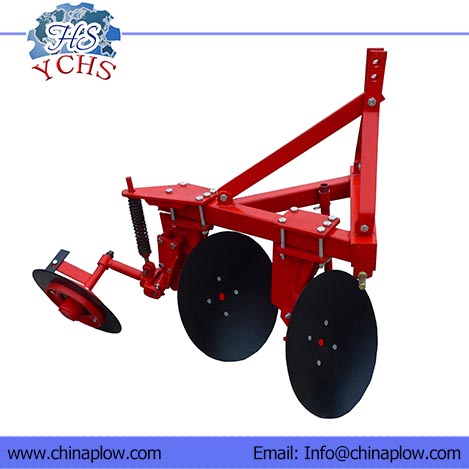

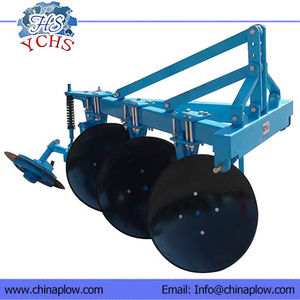

Disc plough is matched with four-wheel tractor; the discs of plough are revolving to furrow the land during operation. The mounted disc plow is especially suitable for land which has weeds, stems and frictional soil with small brick etc.


Advantages:
This tractor disc plough has the feature of not winding grass, not block and no hip building-up.
The mounted disc plough is easy to cut off stems and roots.
Less working resistance.
It is a mounted disc plough for 4-wheel tractor.
65Mn spring steel disc blade, HRC: 38-44.

Model Units 1LYQ-220 1LYQ-315 1LYQ-320 1LY(T)-322
Working width mm 400 450 600 660
Working depth mm 200 220
Q’ty of disc   2 3 3 3
Total weight kg 140 160 190 340
Matched power hp 18 25 25-40 40-50
Linkage   Three-point suspension I type Three-point suspension II type
The items selectable   Scraper or Heavier duty pull rod
