1LYX-330
YCHS

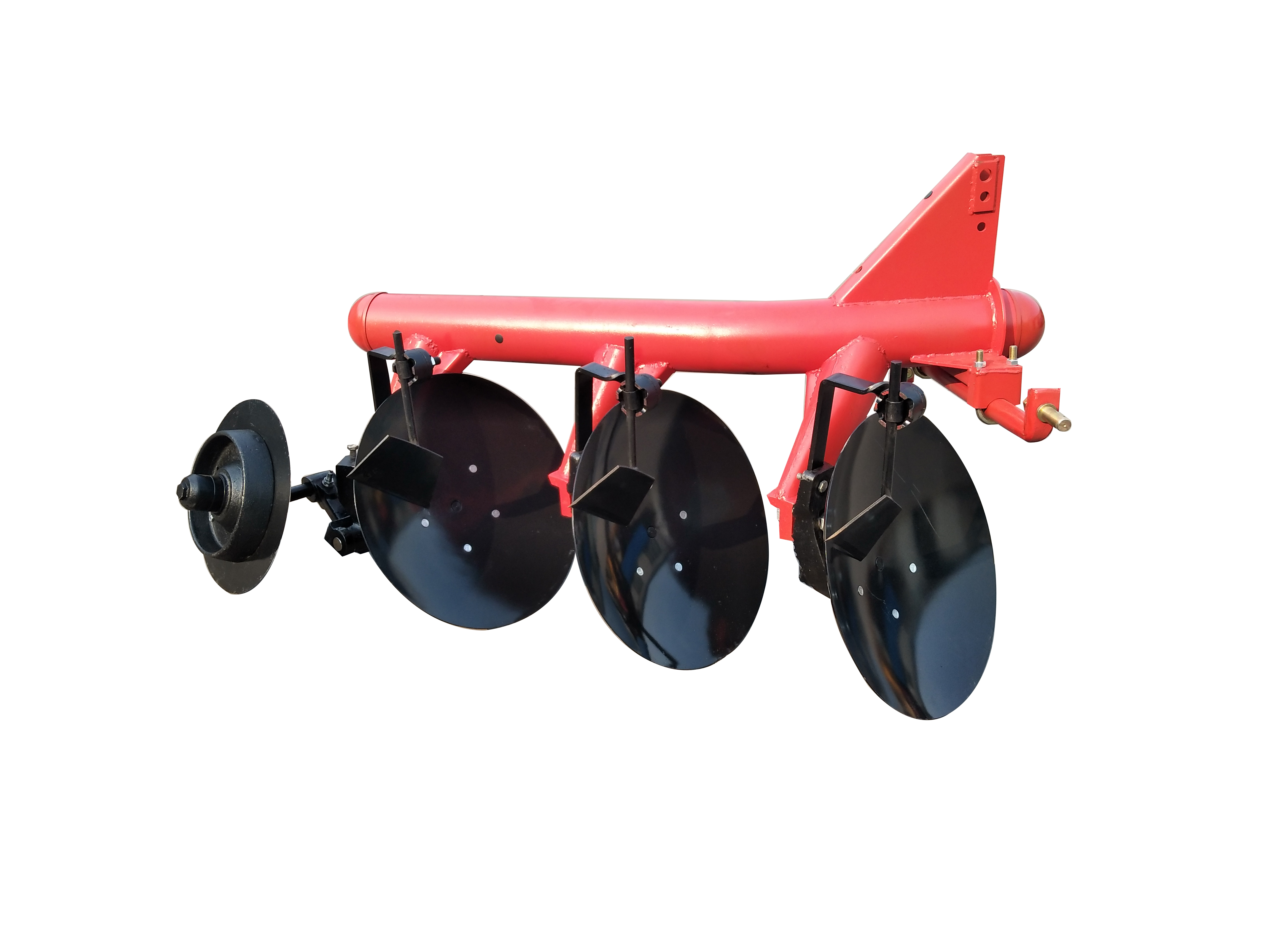

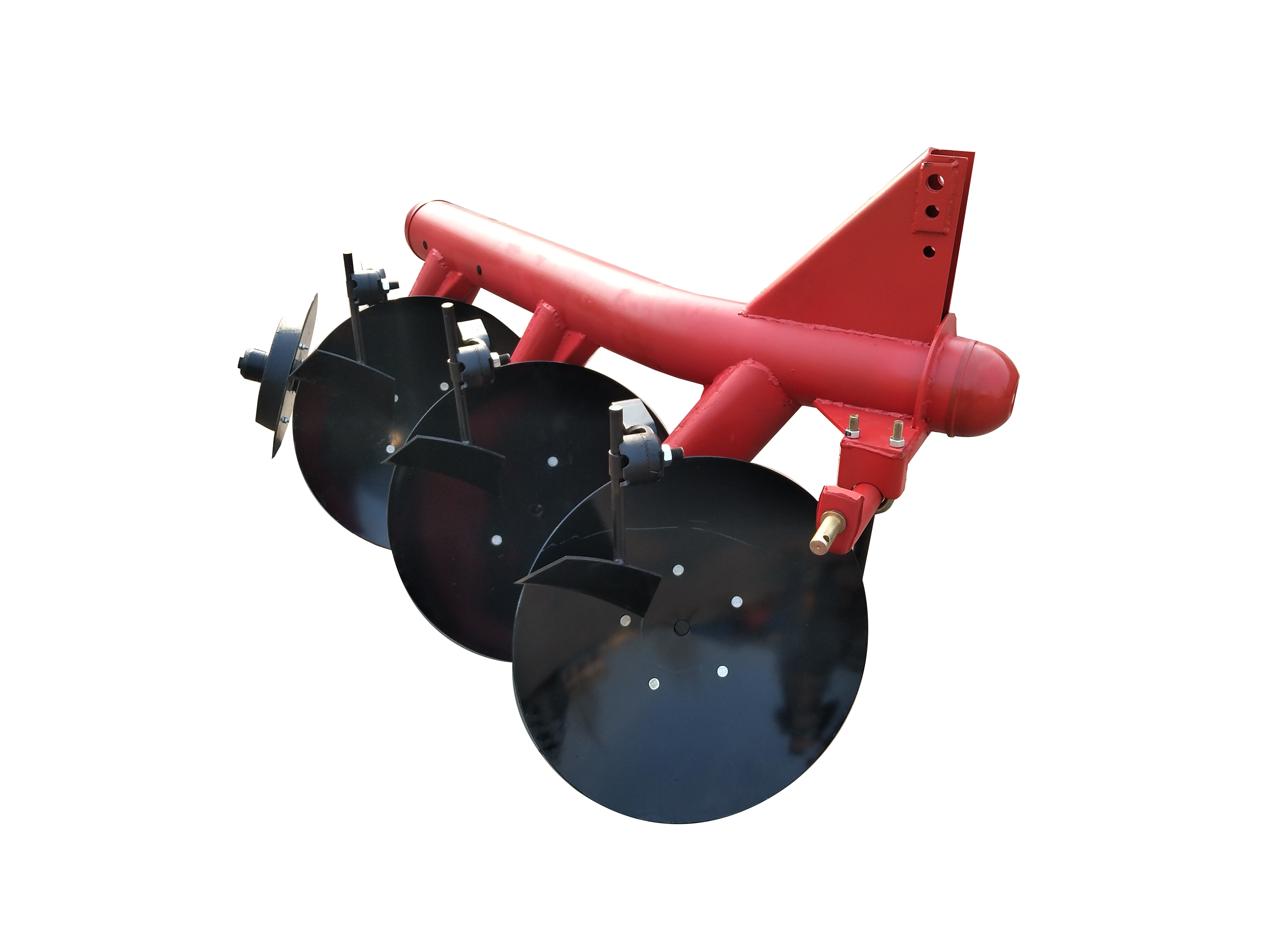

Disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation.. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc .
Advantages:
l This tractor disc plough has the feature of not Winding grass , not block and no hip building-up.
l The mounted disc plough is easy to cut off stems and roots .
l Less working resistance
l It is a mounted disc plough for 4-wheel tractor.
Disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation.. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc .
Advantages:
l This tractor disc plough has the feature of not Winding grass , not block and no hip building-up.
l The mounted disc plough is easy to cut off stems and roots .
l Less working resistance
l It is a mounted disc plough for 4-wheel tractor.
Advantages:
l This tractor disc plough has the feature of not Winding grass , not block and no hip building-up.
l The mounted disc plough is easy to cut off stems and roots .
l Less working resistance
l It is a mounted disc plough for 4-wheel tractor.
l The frame of this farm disk plough is round frame
Model | 单位 | 1LYX-230 | 1LYX-330 | 1LYX-430 | 1LYX-530 |
Working width | mm | 600 | 900 | 1200 | 1500 |
Working depth | mm | 250~300 | |||
Q’ty of disc | 2 | 3 | 4 | 5 | |
Total weight | kg | 300 | 440 | 490 | 550 |
Matched power | hp | 40 | 60 | 100 | 130 |
Linkage | II Three-point suspension II type |
Advantages:
l This tractor disc plough has the feature of not Winding grass , not block and no hip building-up.
l The mounted disc plough is easy to cut off stems and roots .
l Less working resistance
l It is a mounted disc plough for 4-wheel tractor.
l The frame of this farm disk plough is round frame
Model | 单位 | 1LYX-230 | 1LYX-330 | 1LYX-430 | 1LYX-530 |
Working width | mm | 600 | 900 | 1200 | 1500 |
Working depth | mm | 250~300 | |||
Q’ty of disc | 2 | 3 | 4 | 5 | |
Total weight | kg | 300 | 440 | 490 | 550 |
Matched power | hp | 40 | 60 | 100 | 130 |
Linkage | II Three-point suspension II type |
