Heavy disc plough

Quantity:
sharethis sharing button
  • 1LYT

  • Made In P.R.C.

  • Standard Export Packages

  • One Set

  • 1

  • T/T

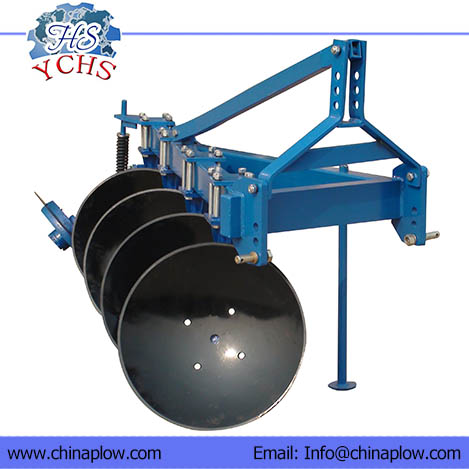

Disc plough is matched with four-wheel tractor; the discs of plough are revolving to furrow the land during operation. The mounted disc plow is especially suitable for land which has weeds, stems and frictional soil with small brick etc.


Advantages:
This tractor disc plough has the feature of not winding grass, not block and no hip building-up.
The mounted disc plough is easy to cut off stems and roots.
Less working resistance.
It is a mounted disc plough for 4-wheel tractor.
65Mn spring steel disc blade, HRC: 38-44.

Model Units 1LY(T)-330 1LY(T)-430 1LY(T)-530
Working width mm 900 1200 1500
Working depth mm 250~300
Q’ty of disc   3 4 5
Total weight kg 450 530 610
Matched power hp 60 100 130
Linkage   Three-point suspension
The items selectable   Scraper or Heavier duty pull rod
