Advantages:

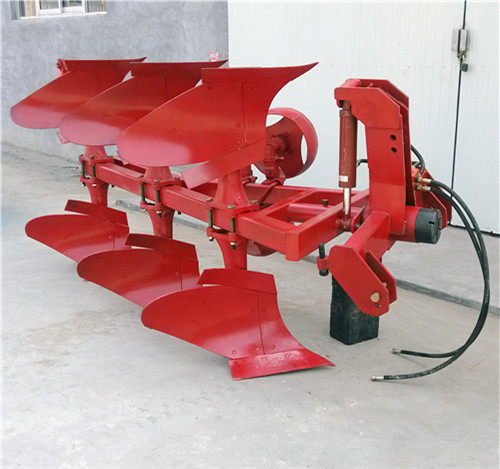

The hydraulic reversible plough for 4-wheel tractor has High efficiency.
Saving labor and time, The ground flat after plowing.

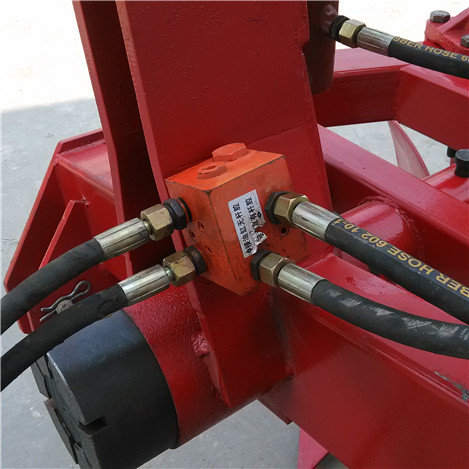

Less idle stroke in the control of hydraulic system.
The width of tractor plow share can be 30cm,35cm.
Material of plough tip is 65Mn steel.
Working depth could be adjusted by the depth roller.
| Model | | 1LF-330 | 1LF-430 | 1LF-530 | 1LF-335 | 1LF-435 | 1LF-535 |
| Working width | mm | 900 | 1200 | 1500 | 1050 | 1400 | 1750 |
| Working depth | mm | 220-270 |
| Number of bottoms | | 6 | 8 | 10 | 6 | 8 | 10 |
| Total weight | kg | 580 | 750 | 950 | 620 | 800 | 1000 |
| Matched power | hp | 50 | 70 | 80 | 55 | 75 | 90 |
| Linkage | |
Three-point suspension II type ,hydraulic output(difunctional oil cylinder),
oil connection in 1/2” thread |
| The items selectable | | (M22*1.5/M20*1.5/M18*1.5) oil connection selectable |
Assembly and testing video:
