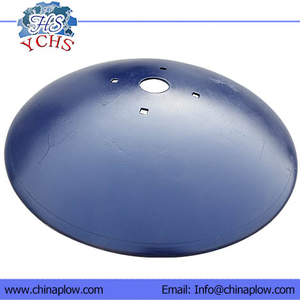

Coulter disc blade

Quantity:
sharethis sharing button
  • 12"-38"

  • Made In P.R.C

  • Iron Case or Iron Stand

  • 200PCS

  • 1

  • T/T

Yucheng HengShing Machinery Co., LTD is a professional manufacturer of harrow disc blade and plough disc blade. Now we have one advanced forging, casting, machining, heat treatment and coating production line, and the products are exported to Europe, America, Africa, Australia, southeast Asia, more than 60 countries and regions. We are trusted by the customer with complete range of products, reliable quality, and timely delivery.
Our company can produce various shape of discs (280 ~ 960 mm in diameter, 3 ~ 12 mm in thickness, material 65 Mn spring steel plate) rake pills. Inner hole is more than eighty kinds of and there are more than thirty radius of curvature.
Advantage:
The disc blade can quickly cut the weeds and induration clods soil, good at tuning soil.
High Carbon disc blade hardness: 38 - 44 HRC.
Featuring superior corrosion resistance with less maintenance requirements
Our company also can produce all kind of discs according to customer's drawings, samples or technical requirements.

Dimension of disc blade
Diameter (D) Concavity (H) Thickness of disc R Sharpening
MM INCH MM MM MM
255 10 12 3 460
510
540
570
600
610
630
650
685
750
900
External / Internal
305 12 19 3
330 13 25 3
355 14 38 3
410 15 38~50 3
430 17 57 3/4
460 18 38~60 3/4
480 19 57 3/4
510 20 44~63 3;4;5
535 21 63 3;4;5
560 22 60~85 4;5;6
585 23 75~90 4;5;6
610 24 75~95 4;5;6
660 26 86~115 5;6;7;8
710 28 100~130 5;6;7;8
760 30 120~135 6;7;8;10;12
