3W series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain. Also for lawn, fruiter, vegetable, road side tree. The capacity could be 200L-1200L, the spraying width could be 6m-12m with 12-120hp tractor.
3W series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain. Also for lawn, fruiter, vegetable, road side tree. The capacity could be 200L-1200L, the spraying width could be 6m-12m with 12-120hp tractor.

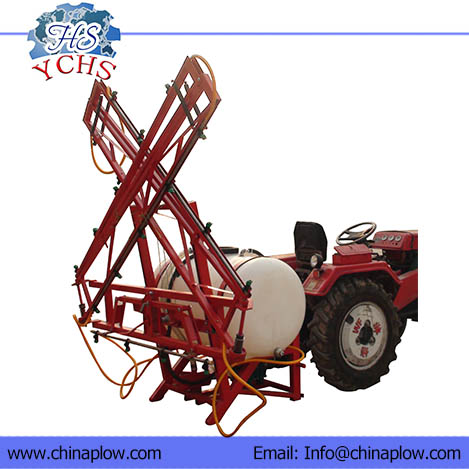

Advantages: This kind of boom sprayer is a tractor mounted sprayer. Wide working scope, spraying for bean, cotton, corn etc. Wide spraying with to be 12m max, and the working angle of this tractor sprayer could be adjusted. The capacity of mounted boom sprayer could be adjusted to meet different need from the user.
Model
Unit
3W-
200
300
400
500
700
900
1000
Working width
m
6
10/12
Case volume
L
200
300
400
500
700
900
1000
PTO Rotation speed
r/min
540
PTO shaft spline
6 spline
Total weight
kg
80
90
130
240/270
310/340
350/380
380/400
Matched power
hp
15
20-30
30-45
50-70
60-80
70-90
70-100
Linkage
Three-point suspension I(II)type
The items selectable
PTO transmission shat in 8 spline
Assembly and testing video:
Advantages: This kind of boom sprayer is a tractor mounted sprayer. Wide working scope, spraying for bean, cotton, corn etc. Wide spraying with to be 12m max, and the working angle of this tractor sprayer could be adjusted. The capacity of mounted boom sprayer could be adjusted to meet different need from the user.
