Agricultural equipment boom sprayer for tractor

Quantity:
sharethis sharing button
  • 3W-500-10

  • Made in China

  • set

  • 1

  • 1

  • T/T

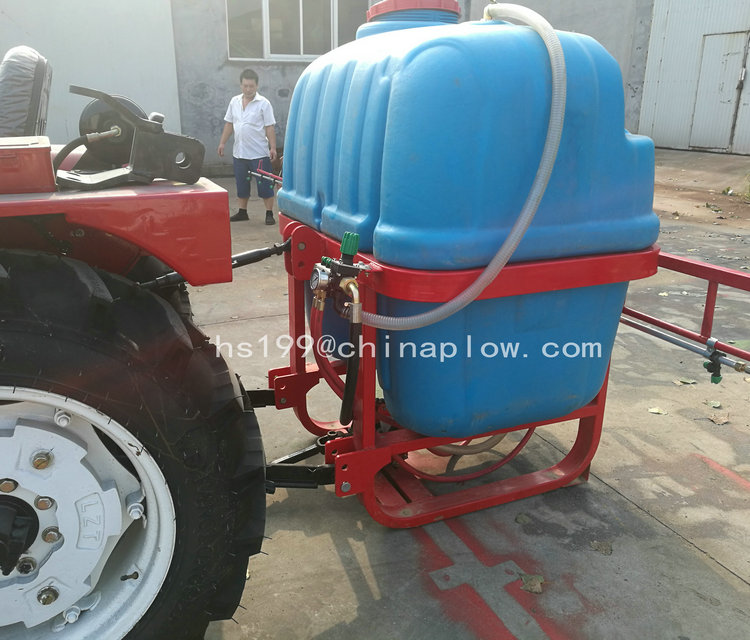

This agricultural equipment boom sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain. Also for lawn, fruiter, vegetable, road side tree. The capacity could be 200L-1200L, the spraying width could be 6m-12m with 12-120hp tractor.
Advantages:
This kind of boom sprayer is a tractor mounted sprayer.
Wide working scope, spraying for bean, cotton, corn etc.
Wide spraying with to be 12m max, and the working angle of this tractor sprayer could be adjusted.
The capacity of mounted boom sprayer could be adjusted to meet different need from the user.
Model Unit 3W-
    200 300 400 500 700 900 1000
Working width m 6 10/12
Case volume L 200 300 400 500 700 900 1000
PTO Rotation speed  r/min 540
PTO shaft spline   6 spline
Total weight kg 80 90 130 240/270 310/340 350/380 380/400
Matched power hp 15 20-30 30-45 50-70 60-80 70-90 70-100
Linkage   Three-point suspension I(II)type
The items selectable   PTO transmission shat in 8 spline
