1LYQ-420
YCHS

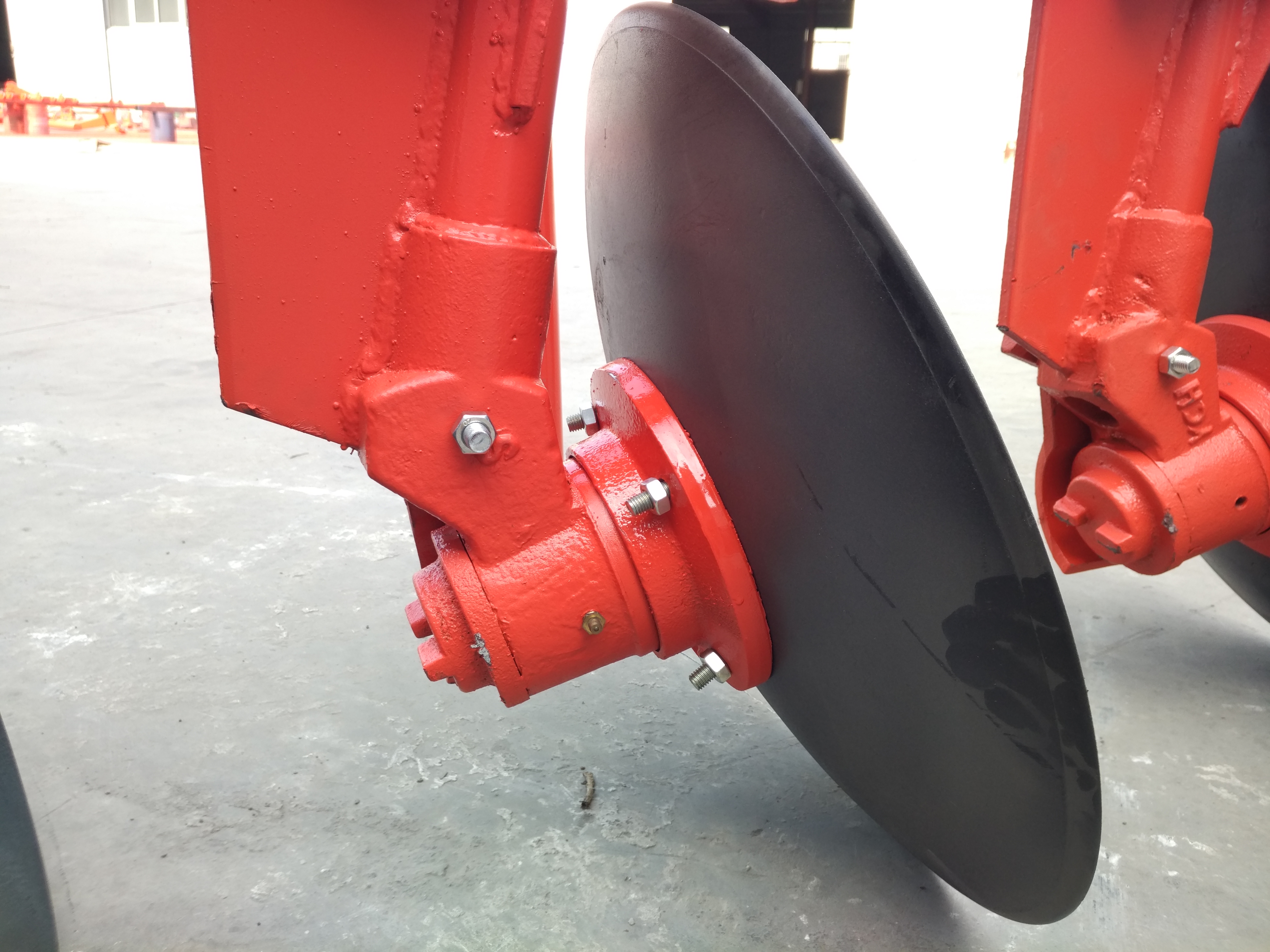

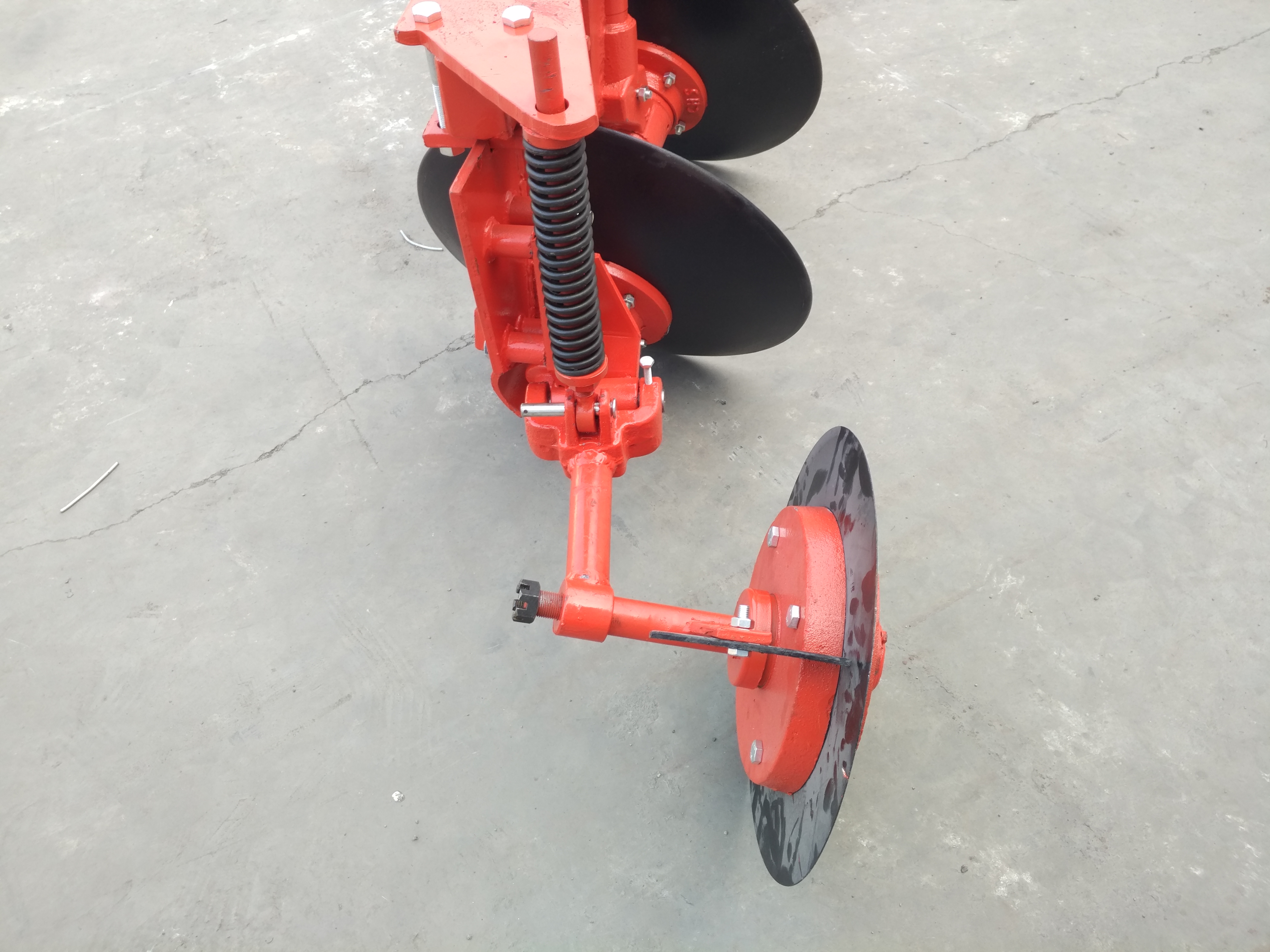

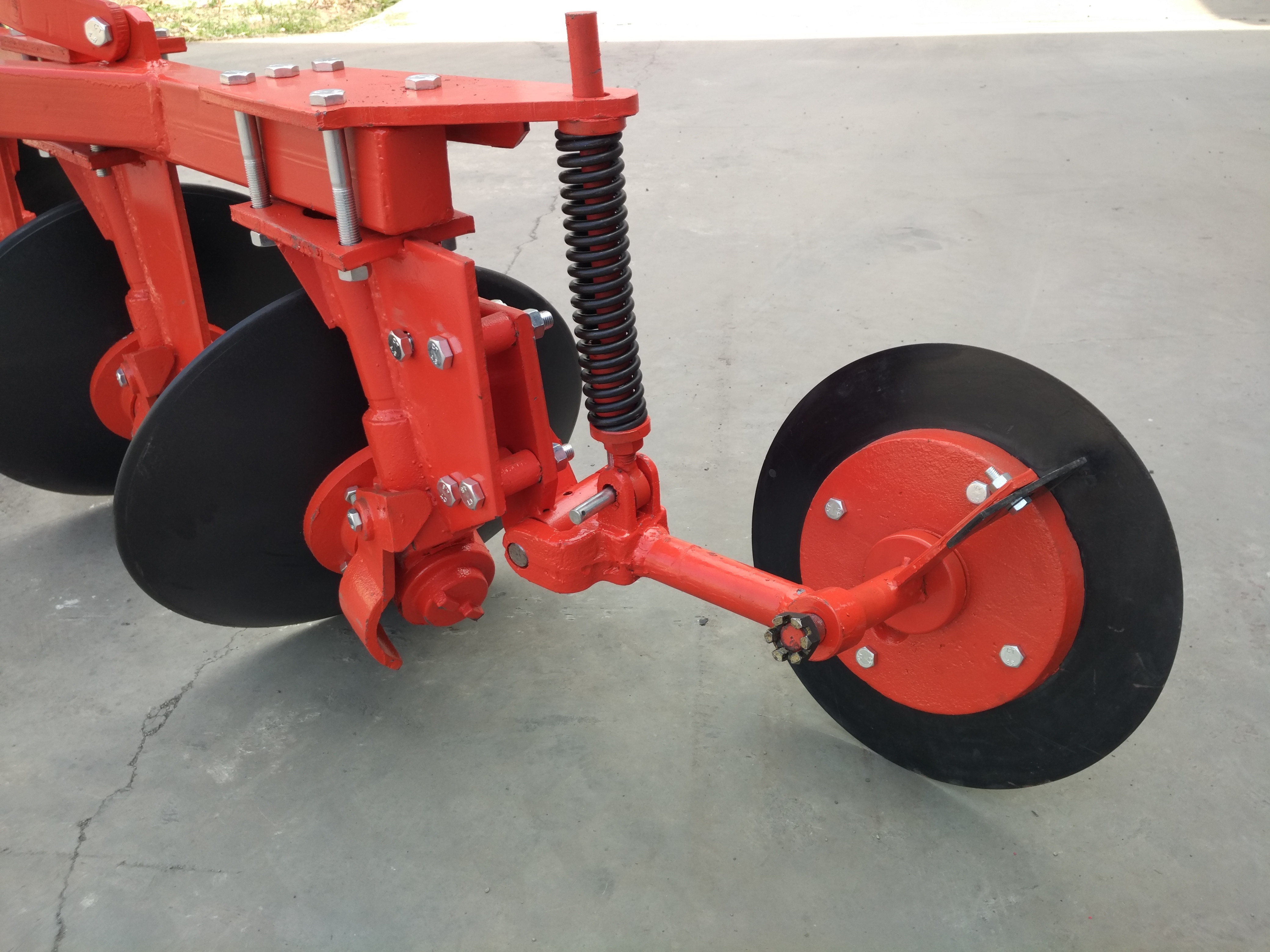

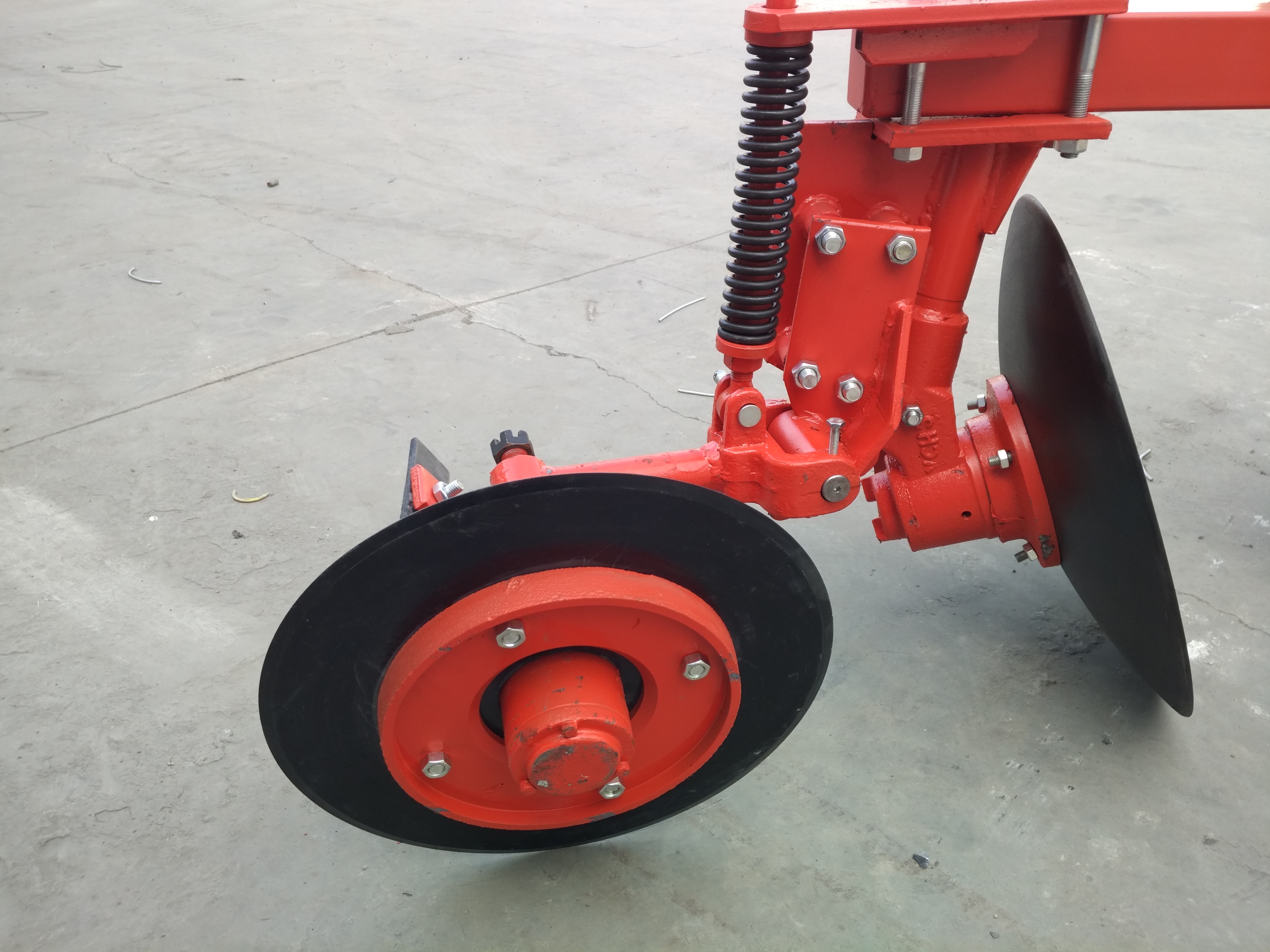

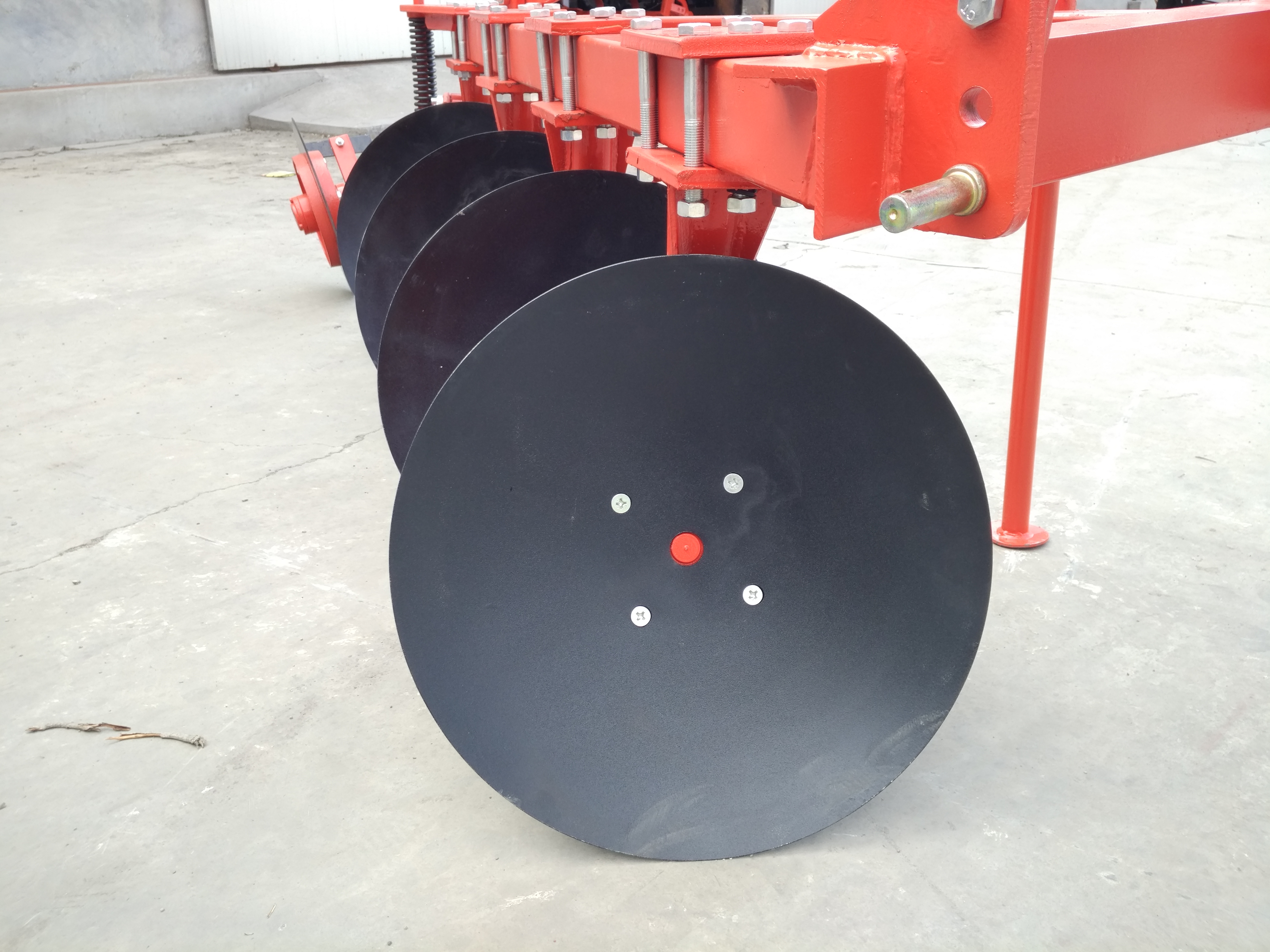

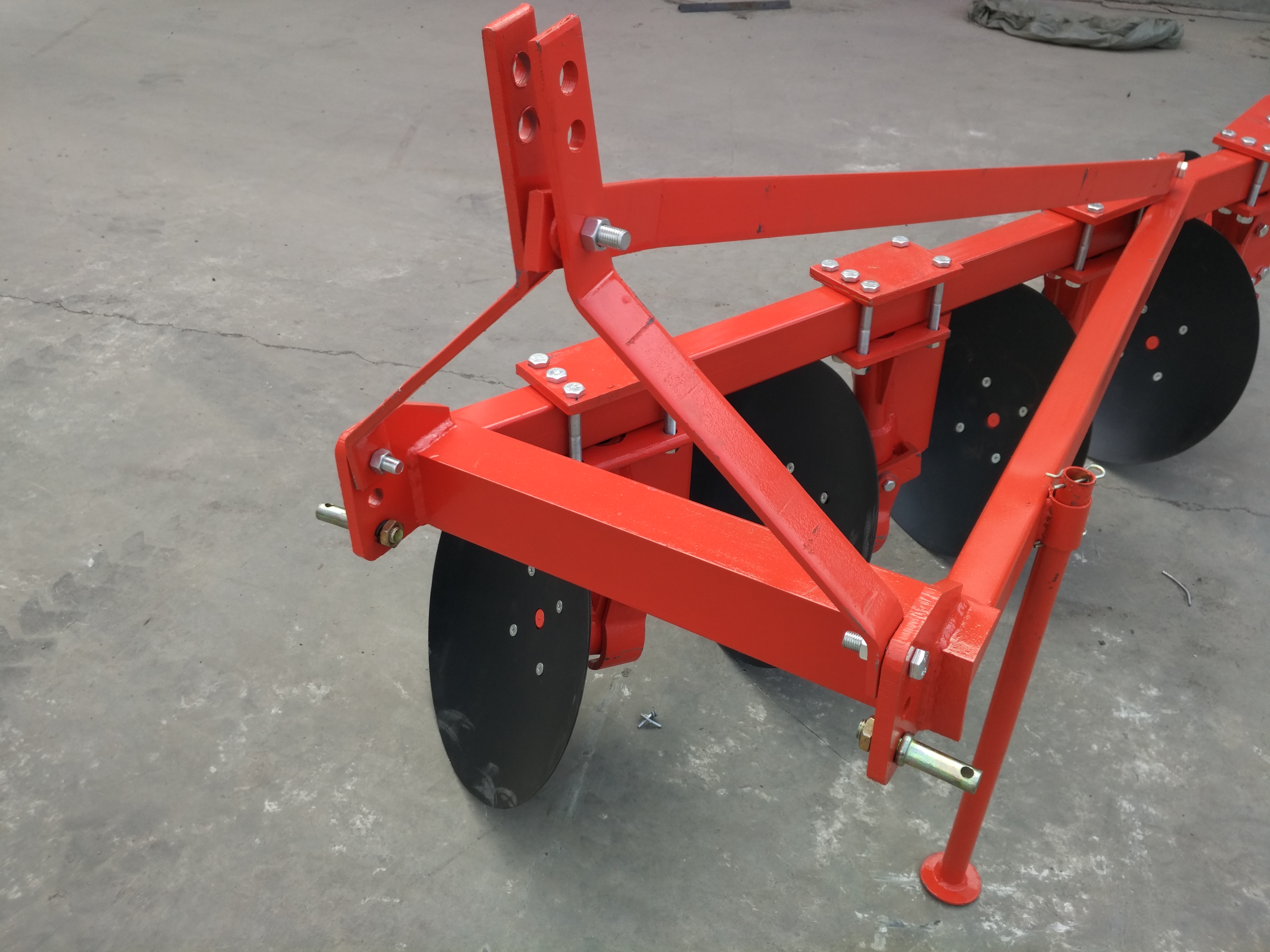

Driven disc plough
1LYQ Series driven disc plough is intermediate gear transmission structure, and the disc blade is rotary working with the support of input power of the tractor’s PTO, this mounted driven disk plough is especially suitable for cultivation in Paddy field.
Advantages:
l It is a mounted driven disc plough for 4-wheels tractor through 3-point suspension system
l This farm disc plow can be rotated actively active rotation
l Less working resistance
l The tractor disc plow is easy to cut stems of crops
l Good effect of turning soil
l This disc plough is also for dry field. It is a amphibious disc plough.
Driven disc plough
1LYQ Series driven disc plough is intermediate gear transmission structure, and the disc blade is rotary working with the support of input power of the tractor’s PTO, this mounted driven disk plough is especially suitable for cultivation in Paddy field.
Advantages:
l It is a mounted driven disc plough for 4-wheels tractor through 3-point suspension system
l This farm disc plow can be rotated actively active rotation
l Less working resistance
l The tractor disc plow is easy to cut stems of crops
l Good effect of turning soil
l This disc plough is also for dry field. It is a amphibious disc plough.
Driven disc plough
Advantages:
l It is a mounted driven disc plough for 4-wheels tractor through 3-point suspension system
l This farm disc plow can be rotated actively active rotation
l Less working resistance
l The tractor disc plow is easy to cut stems of crops
l Good effect of turning soil
l This disc plough is also for dry field. It is a amphibious disc plough.
Model | 单位Unit | 1LYQ-320 | 1LYQ-420 | 1LYQ-520 | 1LYQ-622 | 1LYQ-722 | 1LYQ-822 |
Working width | mm | 660 | 880 | 1100 | 1320 | 1540 | 1760 |
Working depth | mm | 120~200 | |||||
Q’ty of disc | 3 | 4 | 5 | 6 | 7 | 8 | |
Disc diameter | mm | 510 | 560 | ||||
Speed of input shaft | r/min | 540-720 | |||||
Total weight | kg | 220 | 240 | 280 | 325 | 360 | 390 |
Matched power | hp | 15-20 | 20-30 | 25-40 | 40-50 | 50-70 | 70-80 |
Linkage | Three point suspension I type | Three-point suspension II type | |||||
The items selectable | the inclination angle could be ±5° |
Driven disc plough
Advantages:
l It is a mounted driven disc plough for 4-wheels tractor through 3-point suspension system
l This farm disc plow can be rotated actively active rotation
l Less working resistance
l The tractor disc plow is easy to cut stems of crops
l Good effect of turning soil
l This disc plough is also for dry field. It is a amphibious disc plough.
Model | 单位Unit | 1LYQ-320 | 1LYQ-420 | 1LYQ-520 | 1LYQ-622 | 1LYQ-722 | 1LYQ-822 |
Working width | mm | 660 | 880 | 1100 | 1320 | 1540 | 1760 |
Working depth | mm | 120~200 | |||||
Q’ty of disc | 3 | 4 | 5 | 6 | 7 | 8 | |
Disc diameter | mm | 510 | 560 | ||||
Speed of input shaft | r/min | 540-720 | |||||
Total weight | kg | 220 | 240 | 280 | 325 | 360 | 390 |
Matched power | hp | 15-20 | 20-30 | 25-40 | 40-50 | 50-70 | 70-80 |
Linkage | Three point suspension I type | Three-point suspension II type | |||||
The items selectable | the inclination angle could be ±5° |
