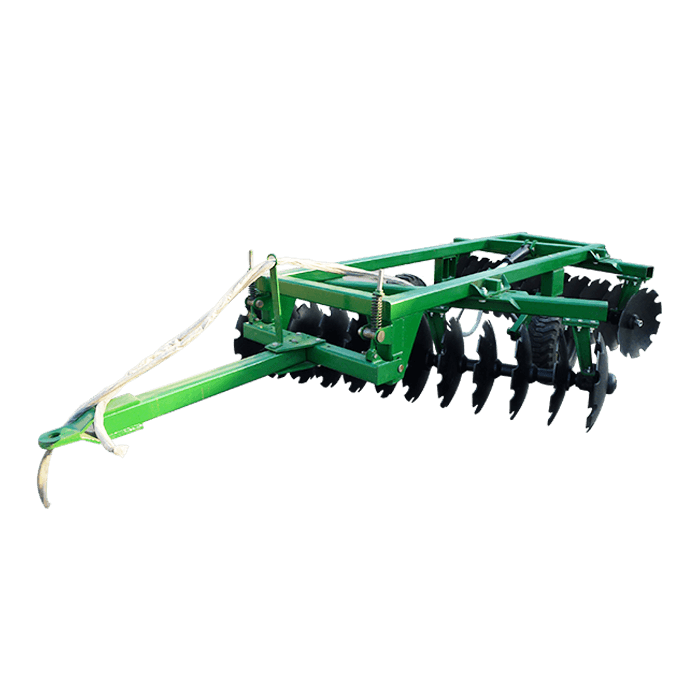

Offset Heavy Duty Disc Harrow
Home » Products » Disc Harrow » Hydraulic Heavy Disc Harrow » Offset Heavy Duty Disc Harrow
| Quantity: | |
|---|---|
LCBB heavy duty disc harrow was designed according to the Europe standard. It adopts hydraulic offset modular structure ,built-bearing composite design, reasonable structure, bearing seal, long life, durable, easy to adjust ,easy maintenance. This heavy duty disc harrow also can be used to clean the stubble before tillage, break the hardened and impervious soil surface, crush and spread straw into the field, shatter soil after tillage ,and level the land and preserve soil moisture.it can be used as tillage machine instead of plow on the cultivated land.
Advantages:
●Trailed by 80-200hp tractor such as YTO,JOHNDEER tractor.
●Designed as European standard
●High strength, good seal, the advantages of long life products
●Much stronger harrow frame
●Unique design of bearing assembly can keep seal
●65Mn steel disc blade
Model
| Nos of disc
| Dia. of dics | Working width | Working depth | Tyre | Weight
| Matched power | Linkage |
LCBB2024 | 20 |
26"6mm | 2400mm |
200-240mm | 7.50-16/11L-15 | 1800/2000kg | 80-120hp | Trailed(trailed hole diameter 38mm);hydraulic output in 1 type(difunctional oil cylinder); oil connection in 1/2" thread
|
LCBB2428 | 24 | 2800mm | 7.50-16/11L-15 | 2100/2350kg | 120-160hp | |||
LCBB2834 | 28 | 3400mm | 11L-15/400/60-15.5 | 2400/2700kg | 160-200hp |
