1LF-425
YCHS
Agriculture machinery equipment Mouldboard Plough Hydraulic reversible plough for sale
1LF hydraulic reversible plow is mounted with four-wheel tractor; it is used for the loam,sand loam , cultivated and dry land ,it can finish the furrowing work in double way.
Advantages:
l The hydraulic reversible plough for 4-wheel tractor has High efficiency
l Saving labor and time ,The ground flat after plowing
l Less idle stroke in the control of hydraulic system.
l The width of tractor plow share can be 30cm,35cm.

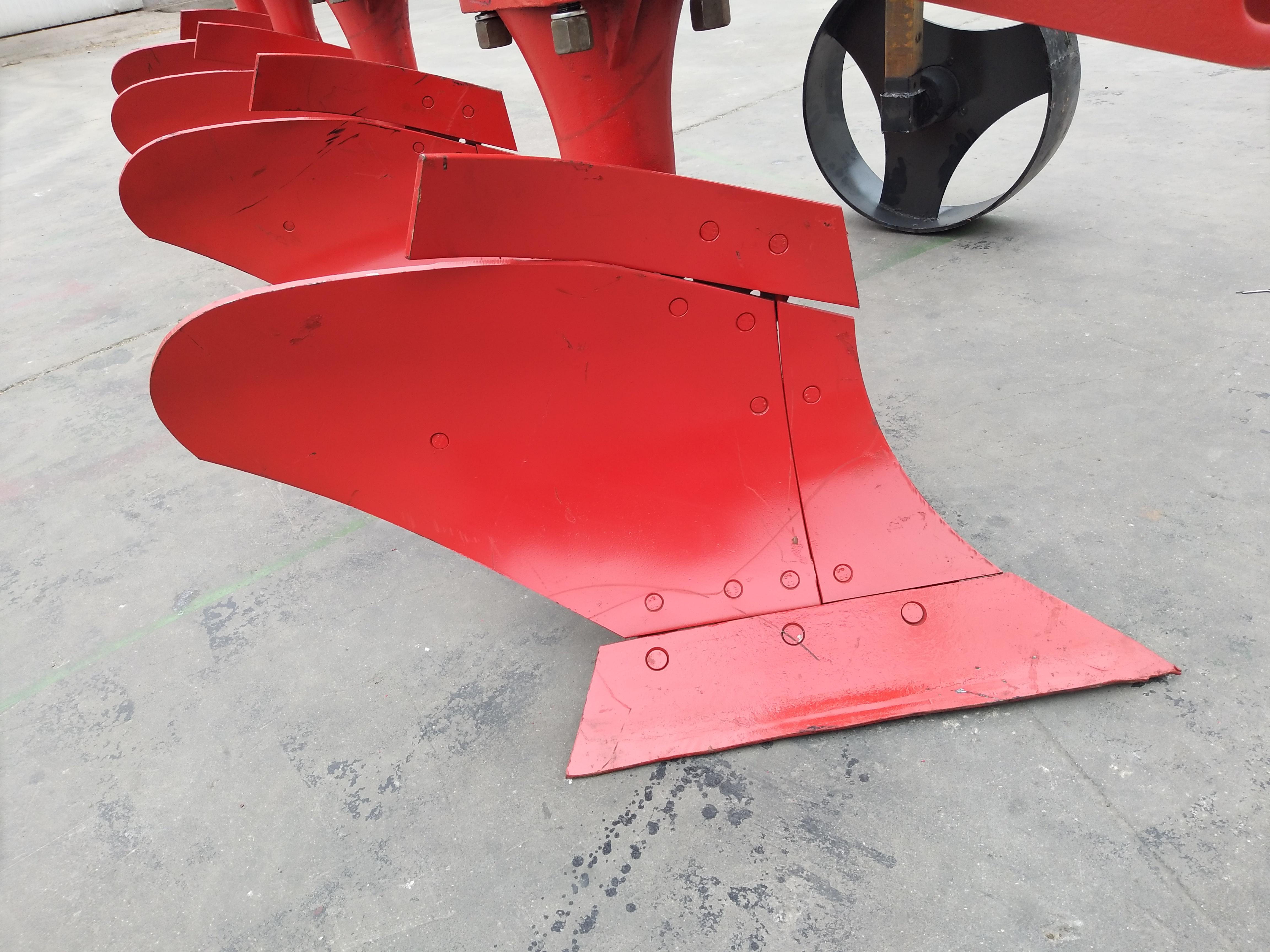

l Material of plough tip is 65Mn steel
l Working depth could be adjusted by the depth roller
Agriculture machinery equipment Mouldboard Plough Hydraulic reversible plough for sale
1LF hydraulic reversible plow is mounted with four-wheel tractor; it is used for the loam,sand loam , cultivated and dry land ,it can finish the furrowing work in double way.
Advantages:
l The hydraulic reversible plough for 4-wheel tractor has High efficiency
l Saving labor and time ,The ground flat after plowing
l Less idle stroke in the control of hydraulic system.
l The width of tractor plow share can be 30cm,35cm.
l Material of plough tip is 65Mn steel
l Working depth could be adjusted by the depth roller

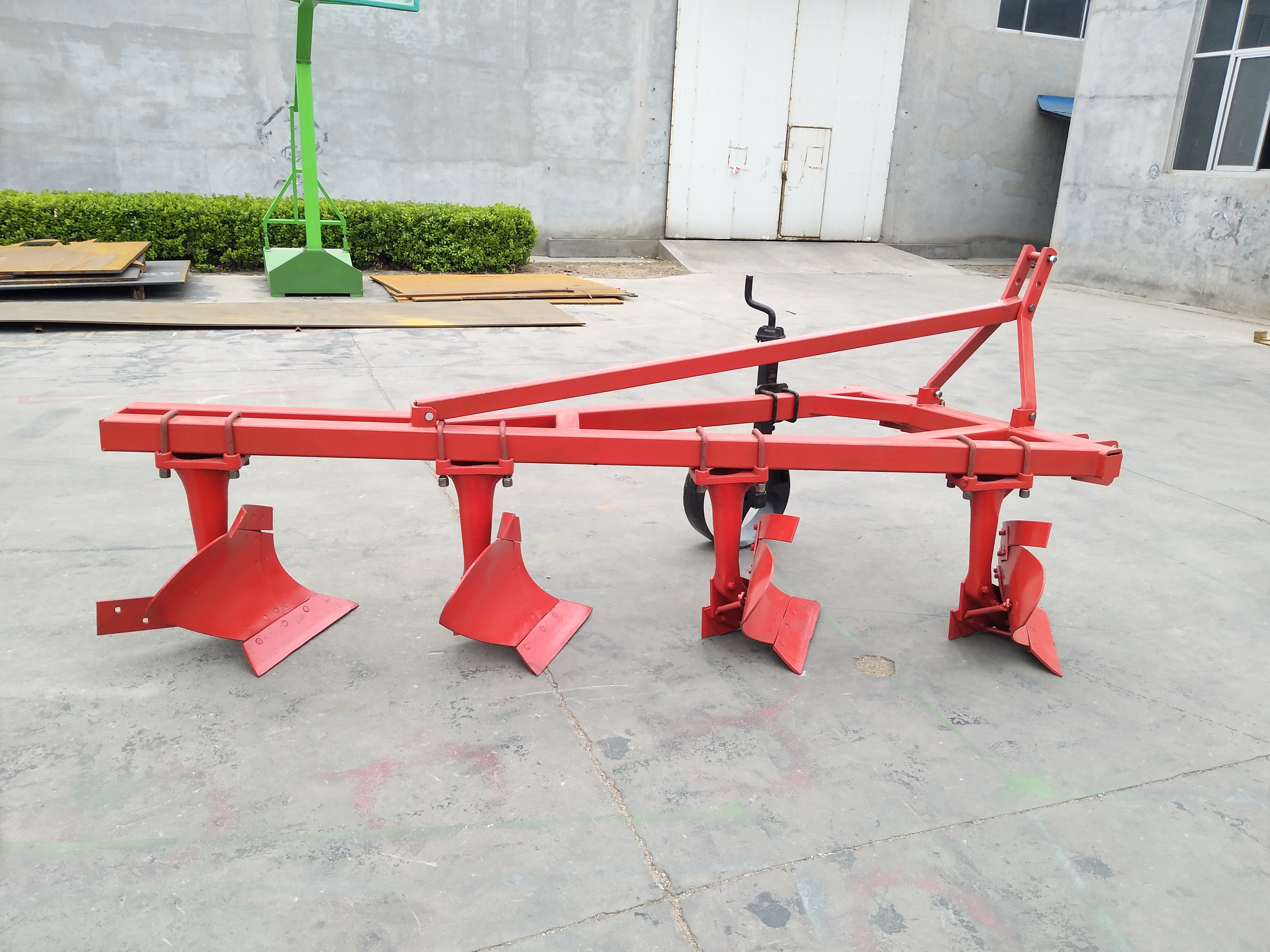

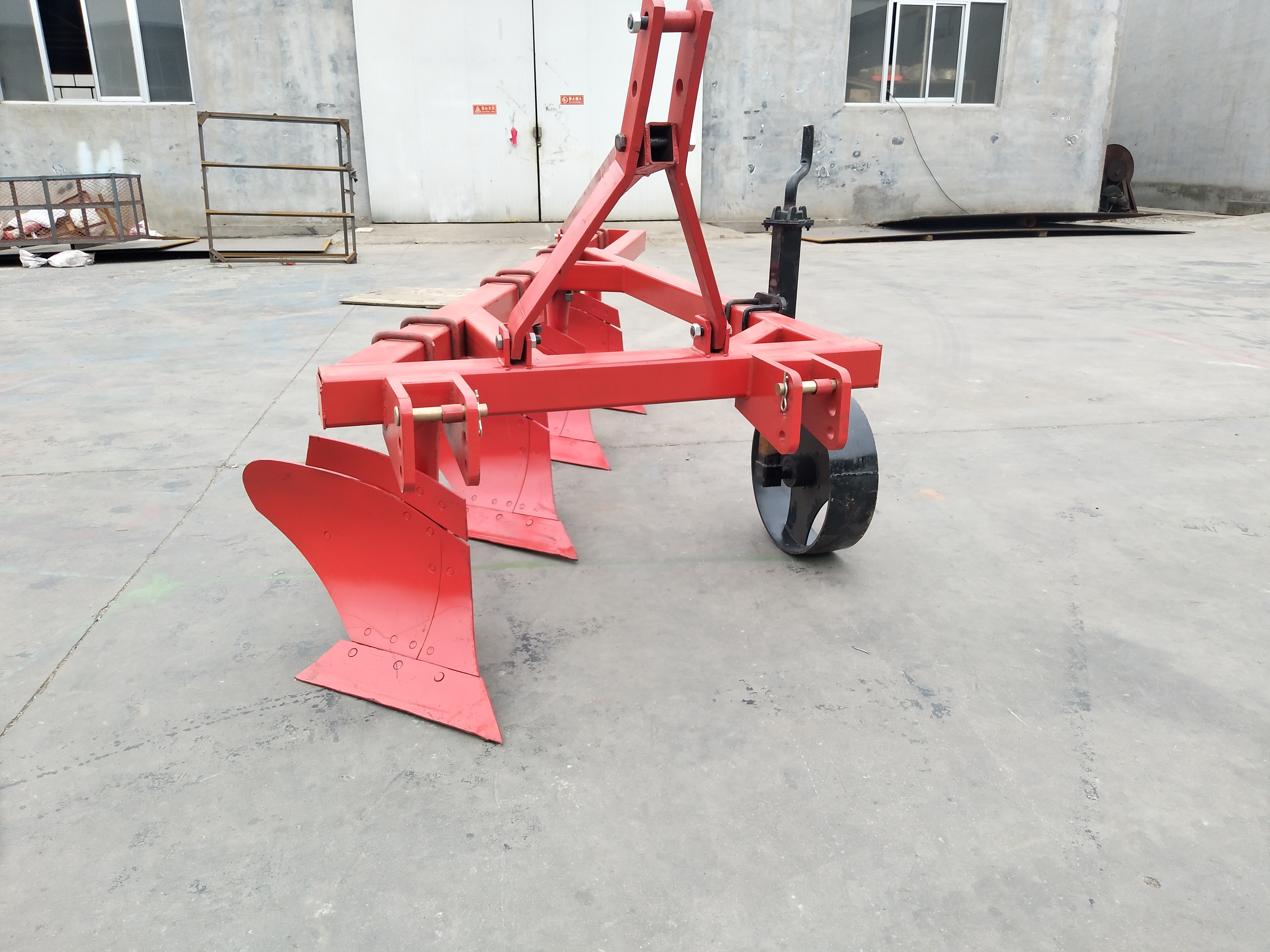

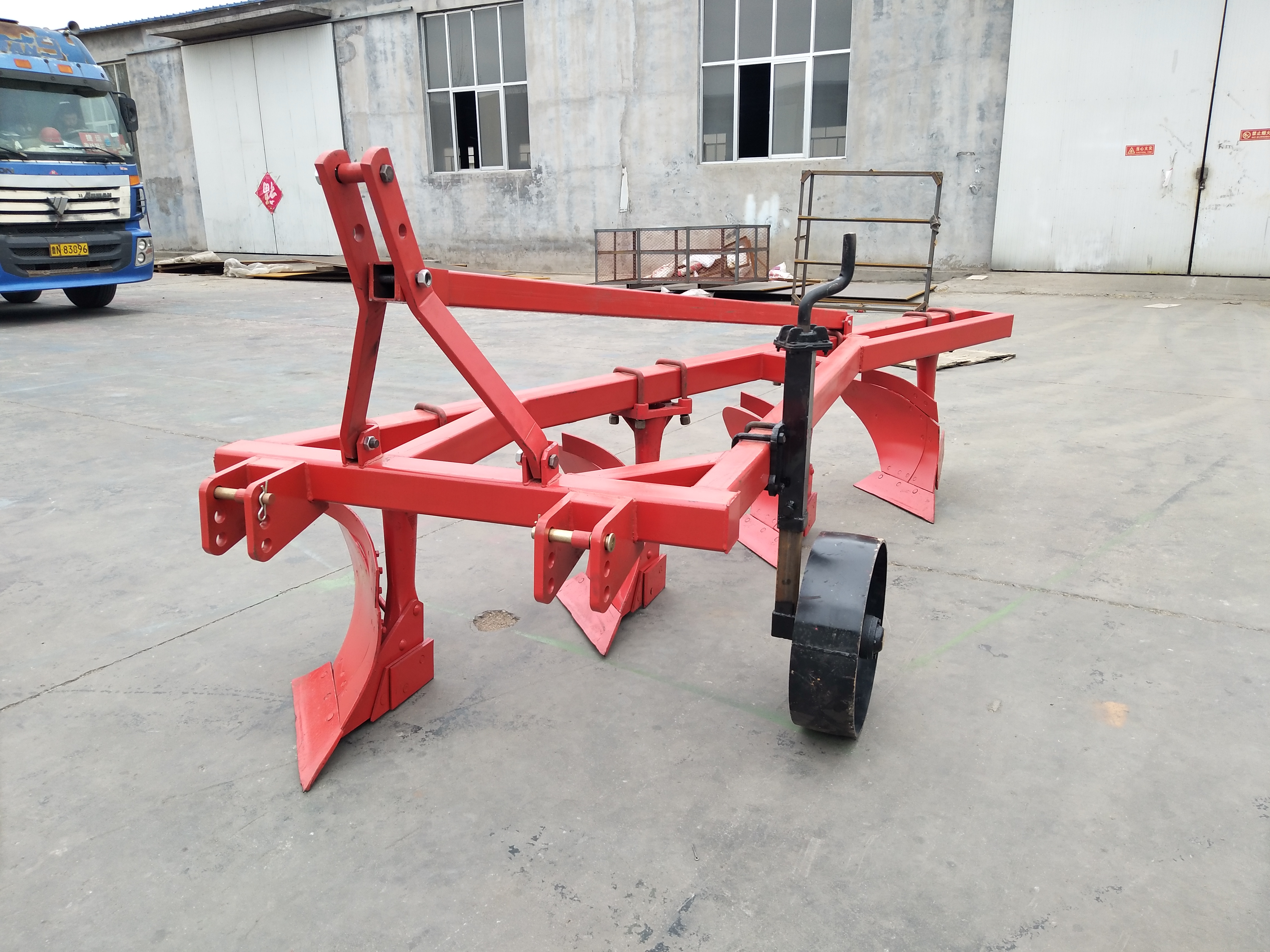

1LF hydraulic reversible plow
Advantages:
l The hydraulic reversible plough for 4-wheel tractor has High efficiency
l Saving labor and time ,The ground flat after plowing
l Less idle stroke in the control of hydraulic system.
l The width of tractor plow share can be 30cm,35cm.
l Material of plough tip is 65Mn steel
l Working depth could be adjusted by the depth roller
Model | 单位 | 1LF-330 | 1LF-430 | 1LF-530 | 1LF-335 | 1LF-435 | 1LF-535 |
Working width | mm | 900 | 1200 | 1500 | 1050 | 1400 | 1750 |
Working depth | mm | 220-270 | |||||
Number of bottoms | 6 | 8 | 10 | 6 | 8 | 10 | |
Total weight | kg | 580 | 750 | 950 | 620 | 800 | 1000 |
Matched power | hp | 50 | 70 | 80 | 55 | 75 | 90 |
Linkage | II Three-point suspension II type ,hydraulic output(difunctional oil cylinder),oil connection in 1/2” thread | ||||||
The items selectable | 可选配油管接头(M22*1.5/M20*1.5/M18*1.5) oil connection selectabl |
1LF hydraulic reversible plow
Advantages:
l The hydraulic reversible plough for 4-wheel tractor has High efficiency
l Saving labor and time ,The ground flat after plowing
l Less idle stroke in the control of hydraulic system.
l The width of tractor plow share can be 30cm,35cm.
l Material of plough tip is 65Mn steel
l Working depth could be adjusted by the depth roller
Model | 单位 | 1LF-330 | 1LF-430 | 1LF-530 | 1LF-335 | 1LF-435 | 1LF-535 |
Working width | mm | 900 | 1200 | 1500 | 1050 | 1400 | 1750 |
Working depth | mm | 220-270 | |||||
Number of bottoms | 6 | 8 | 10 | 6 | 8 | 10 | |
Total weight | kg | 580 | 750 | 950 | 620 | 800 | 1000 |
Matched power | hp | 50 | 70 | 80 | 55 | 75 | 90 |
Linkage | II Three-point suspension II type ,hydraulic output(difunctional oil cylinder),oil connection in 1/2” thread | ||||||
The items selectable | 可选配油管接头(M22*1.5/M20*1.5/M18*1.5) oil connection selectabl |
