Driven Disc Plough

Quantity:
  • 1LYQ
  • Made In P.R.C.
  • Standard Export Packages
  • One Set
  • 1
  • T/T

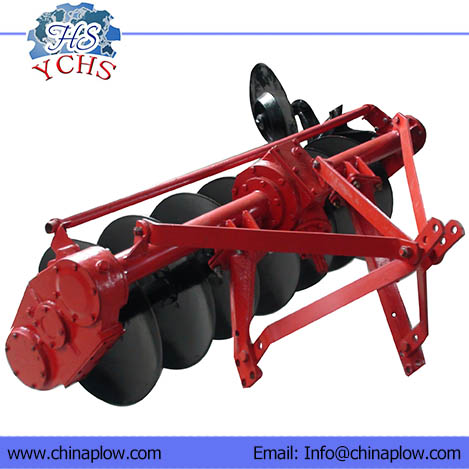

1LYQ Series driven disc plough is intermediate gear transmission structure, and the disc blade is rotary working with the support of input power of the tractor’s PTO, this mounted driven disk plough is especially suitable for cultivation in Paddy field.
Advantages:
It is a mounted driven disc plough for 4-wheels tractor through 3-point suspension system.
This farm disc plow can be rotated actively active rotation.
Less working resistance.
The tractor disc plow is easy to cut stems of crops.
Good effect of turning soil.
This disc plough is also for dry field. It is a amphibious disc plough.

Model Unit 1LYQ-320 1LYQ-420 1LYQ-520 1LYQ-622 1LYQ-722 1LYQ-822
Working width mm 660 880 1100 1320 1540 1760
Working depth mm 120~200
Q’ty of disc   3 4 5 6 7 8
Disc diameter mm 510 560
Speed of input shaft r/min 540-720
Total weight kg 220 240 280 325 360 390
Matched power hp 15-20 20-30 25-40 40-50 50-70 70-80
Linkage   Three point suspension I type
Three-point suspension II type
The items selectable   The inclination angle could be ±5°
